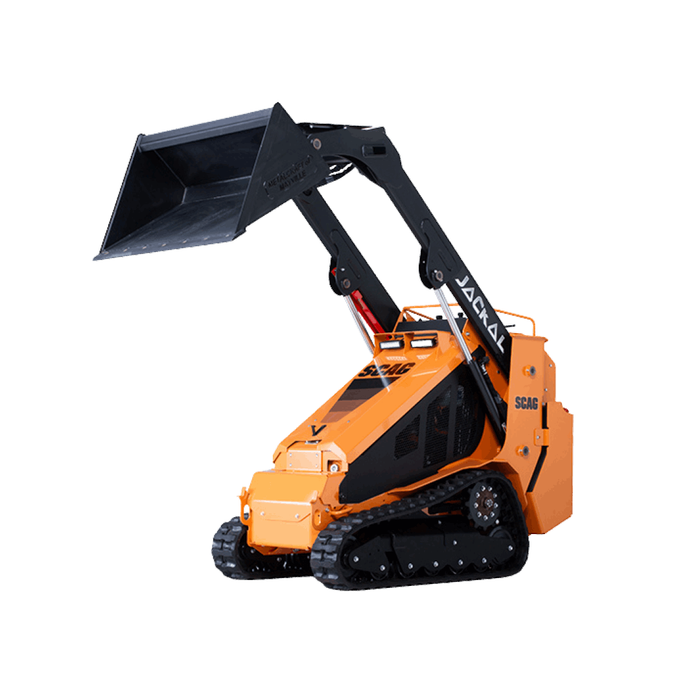

Scag Commercial Mini Skid Steer 40in Jackal, 25HP Kubota Diesel - SJ1125-W-40-25KBD (DEMO UNIT)

The Scag 40in Jackal is a robust Mini Skid Steer designed for professional and commercial use. This stand-on mini skid steer is equipped with a 25hp Kubota diesel engine, making it ideal for heavy-duty tasks such as moving heavy loads, digging, and trenching. The Jackal's versatile design and powerful hydraulic system ensure peak performance and reliability in challenging environments.

With its dual 7in-wide reinforced tracks and optional wide (9in) tracks, the Scag Jackal offers excellent ground pressure and traction. The machine features a high lift and dump point, allowing operators to easily reach into large dumpsters, containers, and truck beds.

Key Features

• Versatile track options: Easy-change capability between narrow (7in) and optional wide (9in) tracks, providing flexibility in different work environments.
• High-torque motors: Equipped with Parker Torqmotor TGK series 360 cc LSHT cast-iron high-torque wheel motors for exceptional traction and maneuverability.
• Powerful hydraulic system: 15 GPM auxiliary hydraulic flow at 3000 psi, ensuring the power and efficiency needed for various tasks.
• User-friendly controls: Ergonomic joystick drive and bucket controls, along with the Lift and Tilt Joystick, Drive Control Joystick, and Auxiliary Hydraulic Control, for intuitive operation.
• Safety features: High-Temp Hydraulic Warning Light, footplate-actuated operator presence system interlock to engine kill, and mechanical sprocket lock for enhanced safety.
• High lift capacity: 1,125lb lift capacity with a 3,142lb tip capacity, and an 83in hinge pin height for high lift and dump points.
• Durable construction: Bucket shells made from Grade 100, military-grade steel for unmatched strength and toughness.

Specifications

Product Dimensions

• Length (without front attachment): 86in
• Length (with front attachment): 112in
• Width (without front attachment): 35.5in
• Width (with front attachment): 36in
• Height: 56.5in

Weight

• Weight (no fuel, no attachment): 2952lb
• Weight (no fuel, with 34in bucket): 3127lb

Chassis

• Fuel tank: 12-gallon total capacity (dual 6-gallon tanks)
• Ground clearance: 7.5in

Drive System

• Type: Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive track
• Track: Dual 7in-wide, reinforced tracks included; 5.5 psi of ground pressure. Easy-change capability between narrow (7in) and optional wide (9in) tracks.
• Hydro pumps: Two 18cc pumps with dump valves for movement without running engine; one cooling fan
• Drive wheel motors: Two Parker Torqmotor TGK series 360 cc LSHT cast-iron high torque wheel motors
• Auxiliary hydraulic system: 15 GPM at 3000 psi
• Hydro reservoir: 12-gallon capacity cooling reservoir; uses MV68 fluid and 10 micron filter

Steering/Travel Control

• Joystick drive control: Easy-to-use joystick drive control lever via pilot servo
• Deep valves: Allows for movement without engine running
• Parking brake: Mechanical sprocket lock
• Safety group: Footplate-actuated operator presence system interlock to engine kill
• Forward speed range: 0 up to 4.0 mph

Lift System/Loader Arms

• Type: Hydraulic-powered radial lift loader arms with universal-type mounting system to accept a wide variety of buckets and other attachments
• Control: Easy-to-use joystick control lever
• Lift capacity: 1,125lb maximum
• Tip capacity: 3,142lb maximum
• Bucket width: 34in inside width; 36in cutting width
• Hinge pin height: 83in
• Maximum bucket angle rollback: 25°
• Bucket dump angle: 40°

Engine

• Engine model: Kubota D1305-E4B
• Horsepower: 24.8hp
