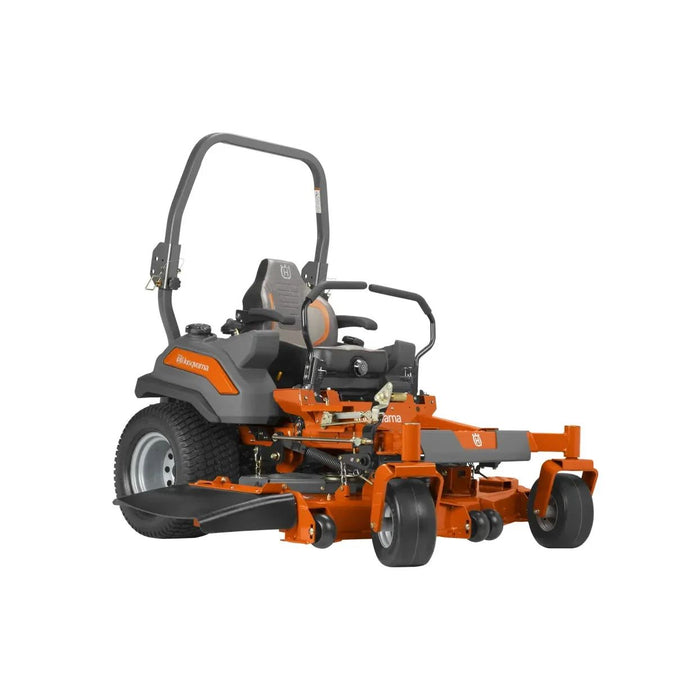

Husqvarna Z560L Commercial Zero Turn Lawn Mower 970505101

Husqvarna Z560L Commercial Zero Turn Lawn Mower 970505101

by Husqvarna
Sold out
$13,399.00 - $13,399.00
$13,399.00
$13,399.00
$13,399.00 - $13,399.00
$13,399.00

Description

The Husqvarna Z500 series zero turn mower represents the latest design focused on productivity, durability and cut quality. Providing extreme comfort, high ground speeds and superior traction adds up to exceptional mowing efficiency. Industrial strength throughout the entire design assures of a long & durable service life in commercial mowing applications. Careful design consideration provides unprecedented ease in serviceability.

Specifications

Capacity

  • Cutting Width: 60 in
  • Speed Forward Min: 0 mph
  • Speed Forward Max: 12 mph

Emission

  • Exhaust Emissions (CO₂ EU V): 873 g/kWh

Cutting Deck

  • Cutting Methods: Collect/Mulch/Side discharge
  • Deck Thickness: 10 gauge
  • Deck Wash Port: No
  • Greasable Mandrels: Yes
  • Nose Roller: No
  • Powder-coated Cutting Deck: Yes
  • Spindle/Mandrel Type: Aluminium, commercial
  • Deck Lifting System: Manual, hand operated
  • Cutting Height Steps: 16
  • Cutting Deck Type: 10-gauge fabricated
  • Anti-scalp Wheels: 3
  • Blade Engagement: Electric clutch
  • Blades: 3 pcs
  • Cutting Deck Material: Steel
  • Cutting Height, Min (approximate): 1 in
  • Cutting Height, Max (approximate): 5 in

Dimensions

  • Weight: 1,250 lbs
  • Base Machine Height (ROPS down): 46 in
  • Base Machine Height (ROPS up): 73 in
  • Base Machine Length: 81 in
  • Base Machine Width (Chute Down): 74 in
  • Base Machine Width (Chute Up): 63.75 in

Drive System

  • Transmission Manufacturer: Hydro-Gear
  • Transmission Type: Hydrostatic

Engine

  • Engine Name: FX Series V-Twin
  • Engine Power (As rated by the engine manufacturer): 27 hp
  • Cylinder Displacement: 52 cu.inch
  • Air Filter Type: Heavy-Duty Canister Style
  • Cylinders: 2
  • Engine Cooling: Air
  • Engine Lubrication Type: Full pressure with oil filter
  • Fuel Tank Location: Side (Dual)
  • Fuel Tank Volume (with reserve): 12 gal (US)
  • Motor/Engine Manufacturer: Kawasaki
  • Oil Filter: Yes

Equipment

  • Seat Type: Premium, suspension with seatbelt
  • Cup Holder: Yes
  • Hinged Armrests: Standard
  • Hour Meter Type: Yes
  • ROPS: Standard (foldable)
  • Seat Back Height: High
  • Seat Material: Vinyl
Width Weight Height Length
0 Inch 1250 Pounds 0 Inch 0 Inch
