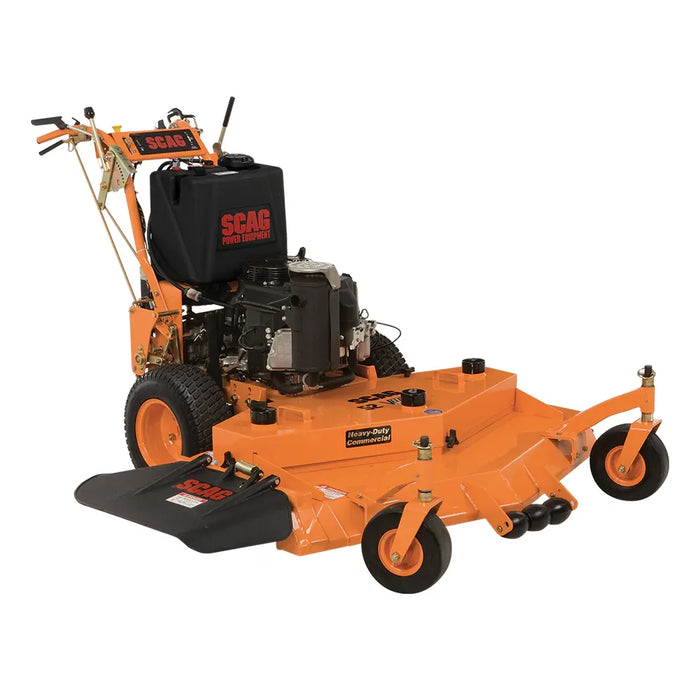

Scag 52in SWZT Commercial Walk-Behind Mower SWZT-52H-18FSE
Hydro-Drive Walk Behind
The Scag SWZT is a 52-inch hydro-drive commercial walk-behind with ergonomic controls that fit your hands, smooth dual-transaxle drive, and a heavy-duty build made for long days and a long service life. We sell and service the SWZT at our Theodore and Saraland stores.
Features
Ogura PTO Clutch Brake
Provides strong, adjustable clutch performance for starting and stopping the cutter deck. Adjustable air gap enhances longevity.
Deep, Fabricated, and Welded Cutter Decks
Heavy-duty Hero Cutter Deck construction. Deep design capable of handling large volumes of grass at higher speeds. Aluminum, sealed ball bearing blade-drive spindles ensure reliability season after season.
Easy-Adjust Cutter-Deck Height System
Tool-free height-of-cut adjustment for quick and convenient changes.
Heavy-Duty Construction
Full commercial-grade build ensures durability and longevity under demanding conditions.
Heavy-Duty Drive System
Dual ZT-2800 transaxles with all-metal internal gears for durability. Smooth, infinitely variable speed and bi-directional control. 10 cc variable-displacement, seven-piston pump and 16 cc fixed-displacement, seven-piston motor per transaxle. Cooling fans help maintain lower operating temperatures.
Ease of Maintenance
Easy-access design for the mower and engine area. Conveniently located grease Zerks for straightforward servicing.
Ergonomic Control System
Comfortable, ergonomic controls designed to fit natural arm angles. Placed to keep hands safe when mowing around obstacles like trees and bushes.
Powerful and Efficient Engine Options
Reliable Kawasaki FS V-twin engines offering up to 22 HP. Designed for efficient power delivery.
Specifications
- Total Fuel Capacity 5.5 gallons
- Drive Tires 18in x 8.5in - 8in
- Caster Tires 9in x 6.5in - 4in
- Seat Not applicable (n/a)
- Drive System Type Hydro-Gear ZT2800 Transaxle
- Pumps Internal Pump
- Internal Motor 16 cc
- Forward Ground Speed Up to 7 mph
- Reverse Ground Speed 3 mph
- Parking Brake Hand lever
- Cutting Width 52"
- Type Hero Cutter Deck
- Cutting Height 1.5" to 4.5" in 0.25" increments
- Deck Lift Hand lever
- Construction Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
- Spindles Aluminum housing with sealed ball bearings.
- Blade Engagement Ogura GT1-BS03 (110 ft lb) - Adjustable air-gap for extended life
- Length 75.5"
- Height 44"
- Tracking Width 41.5"
- Width (chute down) 60.5"
- Width (chute in transport position) 49"
- Weight 585 lb
