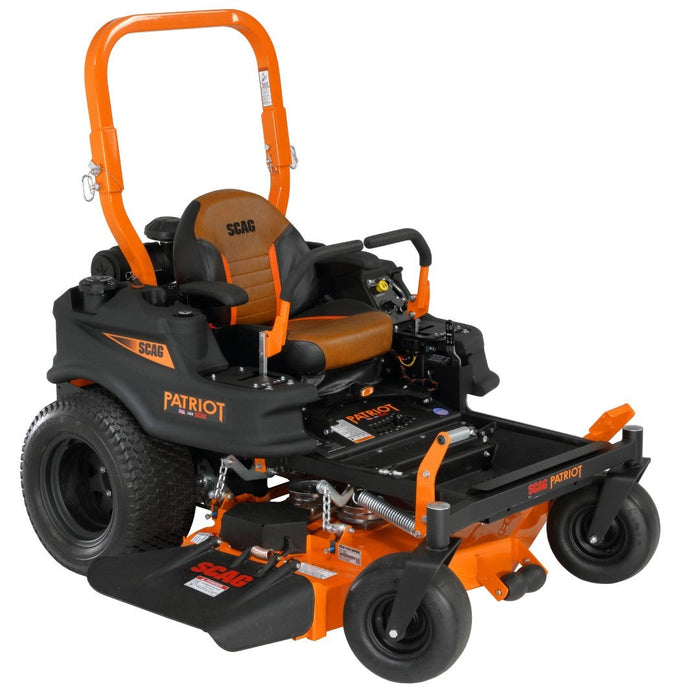

Scag Patriot Commercial Zero Turn Mower - 52in Hero Cutter Deck - 22hp Kawasaki - SPZ-52H-22FX

The Scag Patriot is a zero turn mower designed to meet the needs of lawn care professionals and serious homeowners. This mower features a 52in Hero Cutter Deck and is powered by a 22hp Kawasaki FX691 engine, making it capable of delivering high-quality cuts at higher speeds. The Patriot is built with a strong tubular-steel main frame and a hydro drive system, ensuring durability and smooth operation.

The Scag Patriot is equipped with several features that enhance its performance and comfort. It includes a foot-operated pedal for deck lift and a foot-operated brake with a park lock feature, allowing for easy operation without taking hands off the steering controls. The mower also features a torsion-spring suspension seat and an iso-mounted footplate for enhanced comfort during long hours of use.

Key Features

• Hero Cutter Deck: Deep, fully fabricated, and welded design handles lots of grass at higher speeds, providing an excellent quality-of-cut.
• Ogura PTO Clutch Brake: Strong, adjustable clutch with 108 ft. lb. of holding strength for reliable starting and stopping power.
• Hydro-Gear ZT-3100 Transaxles: Dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels.
• Tubular Steel Frame: High-strength steel frame for unmatched strength and longevity.
• Low-Maintenance Design: Fewer grease points increase operator convenience and ease-of-ownership.
• Suspension Seat: Torsion-spring suspension seat adjusts to each operator’s weight, providing superior comfort.
• Iso-Mounted Footplate: Rubber iso-mounted footplate for enhanced comfort.
• Foot-Pedal Parking Brake: Foot-operated parking brake with a disc-brake system and park lock feature.
• High-Strength Steel Cutter Blades: Stay sharp longer for a better-looking cut and reduced maintenance.

Specifications

Model

• Model: SPZ-52H-22FX

Cutter Deck

• Type: Hero Cutter Deck
• Width: 52in
• Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement plate at cutter deck spindles
• Cutting Height: 1.5in to 5in in .25in increments
• Deck Lift: Foot-operated pedal

Engine

• Type: Kawasaki FX691
• Horsepower: 22hp

Drive System

• Type: Hydro-Gear ZT-3100 Transaxle
• Internal Pump: 10cc
• Internal Motor: 16cc
• Forward Ground Speed: 8.5mph
• Reverse Ground Speed: 5mph

Frame

• Material: Tubular steel

Brake System

• Type: Foot-operated pedal with Ausco disc brakes

Fuel Capacity

• Fuel Capacity: 6.5 gallons

Tires

• Drive Tires: 22in x 10.5in-12in
• Caster Tires: 13in x 6.5in-6in

Dimensions

• Width (chute down): 64.5in
• Width (chute in transport position): 53in
• Height (ROPS folded): 46.5in
• Height (ROPS up): 61in
• Length: 73in

Weight

• Weight: 907-911lb

Seat

• Seat: Torsion-spring suspension seat with armrests

Footplate

• Footplate: Rubber iso-mounted footplate

Cooling System

• Cooling System: Large cooling fans to keep temperatures low and extend component life

Spindles

• Spindles: Heavy-duty, aluminum, sealed ball bearing blade-drive spindles
