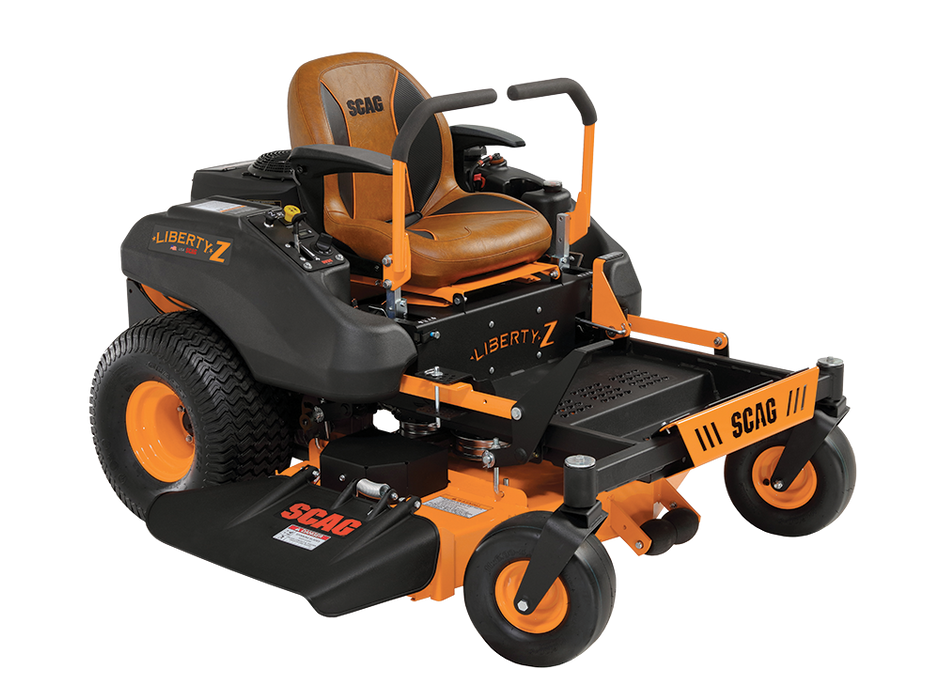

Scag Liberty Z Zero Turn Mower - 61in Hero Cutter Deck - 24hp Kawasaki FR - SZL-61H-24FR
by Scag
Special Order
Original price
$7,249.00
-
Original price
$7,249.00
Original price
$7,249.00
$7,249.00
-
$7,249.00
Current price
$7,249.00
The Scag Liberty Z SZL-61H-24FR is a residential zero-turn mower with a 61in Hero deck and a 24hp Kawasaki FR Series engine. It is Scag's homeowner zero-turn, designed to give residential owners a professionally built mower at a homeowner price. It uses the same deep Hero cutter deck as Scag's Freedom Z and Patriot, dual hydro transaxles and a tubular-steel frame.
Key Features
- 61in heavy-duty Hero cutter deck: deep, fabricated and welded, dual-plate construction with a reinforcement plate at the spindles

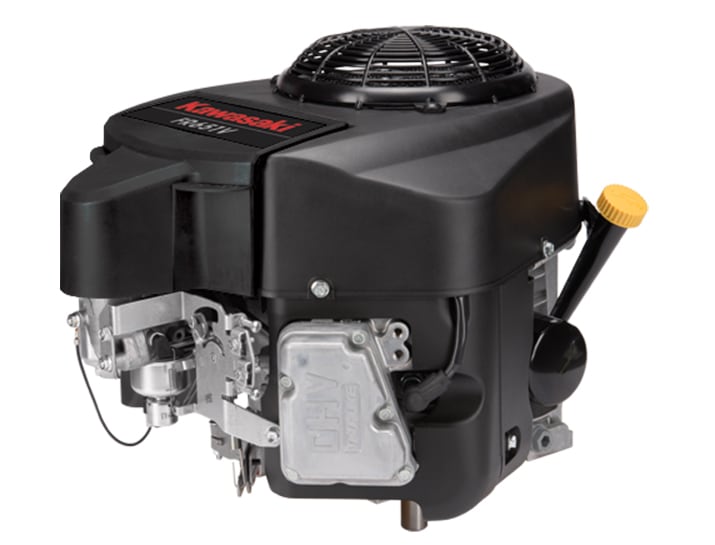

- 24hp Kawasaki FR Series engine (FR730V, 726cc)
- Heavy-duty aluminum blade-drive spindles with sealed ball bearings
- Dual Tuff Torq TZ450 transaxles (10 cc pumps, 10 cc motors), up to 7 mph

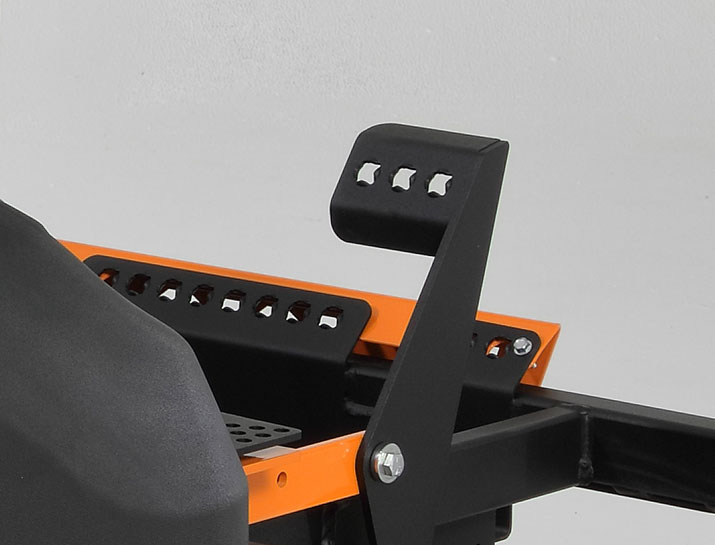

- Spring-assisted foot-pedal deck lift

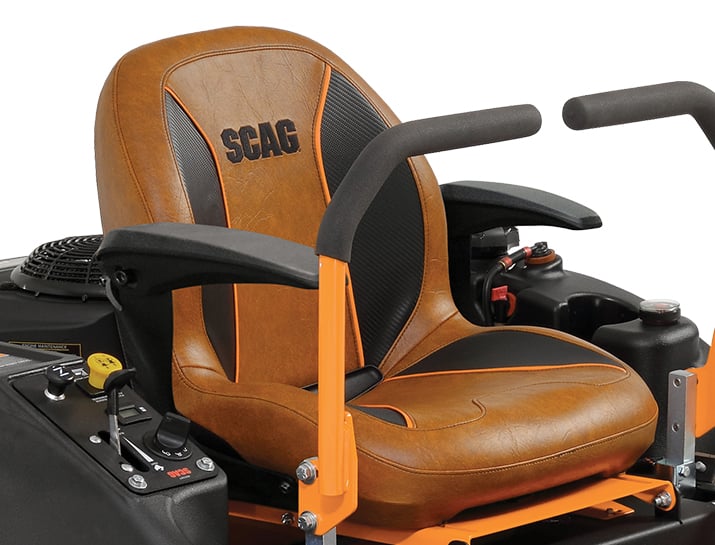

- Padded, contoured seat with armrests (fore/aft adjustment with tools)
- Ogura GT2 PTO clutch brake (108 ft lb) with adjustable air gap
- Tubular-steel main frame and fewer grease points
Specifications
- Model SZL-61H-24FR
- Series Scag Liberty Z
- Engine Kawasaki FR Series, 24 hp
- Engine model FR730V
- Displacement 726cc
- Fuel type Gasoline
- Cutting width 61in
- Deck type Hero
- Total fuel capacity 5.5 gallons
- Drive tires 20in x 10in-10in
- Caster tires 11in x 6in-5in
- Seat Padded with armrests, fore/aft adjustment (tools required)
- Drive system Tuff Torq TZ450 transaxles
- Pumps Internal 10 cc
- Wheel motors Internal 10 cc
- Forward ground speed 7 mph
- Reverse ground speed 5 mph
- Parking brake Hand lever
- Cutting height 1.5in to 4.5in in 0.25in increments
- Deck lift Foot-operated pedal
- Deck construction Dual-plate cutter deck, 2 steel plates, reinforcement plate at spindles
- Spindles Aluminum housing with sealed ball bearings
- Blade engagement Ogura GT2 (108 ft lb), adjustable air gap
- Length 73.5in
- Width (chute down) 73.5in
- Width (chute in transport position) 62in
- Height 41in
- Weight 695 lb
- Optional Scag accessories Tiger Stripe Lawn Striping System, Liberty Z Armrest Kit, 2-Bag Grass Catcher, Hurricane Plus Mulch System, Hurricane Mulch System, Mulch Plate, Trailer Hitch, Chrome Wheel Covers, LED Light Kit, Blade Buddy, Cutter Deck Transport Latch
Warranty
- 5-year / 750-hour non-commercial machine warranty (frame and structural components, hydraulic pumps and wheel motors; parts and labor; excludes wear items)
- Wear items (belts, blades, hydraulic hoses, tires, batteries) and rental use: 90 days
- Engine: covered by the engine manufacturer; see the engine owner's manual
Warranty terms per Scag Power Equipment. Ask us for the full warranty statement.
Questions about this mower, delivery or setup? Call us at (251) 653-5900 or visit our Theodore or Saraland stores.
