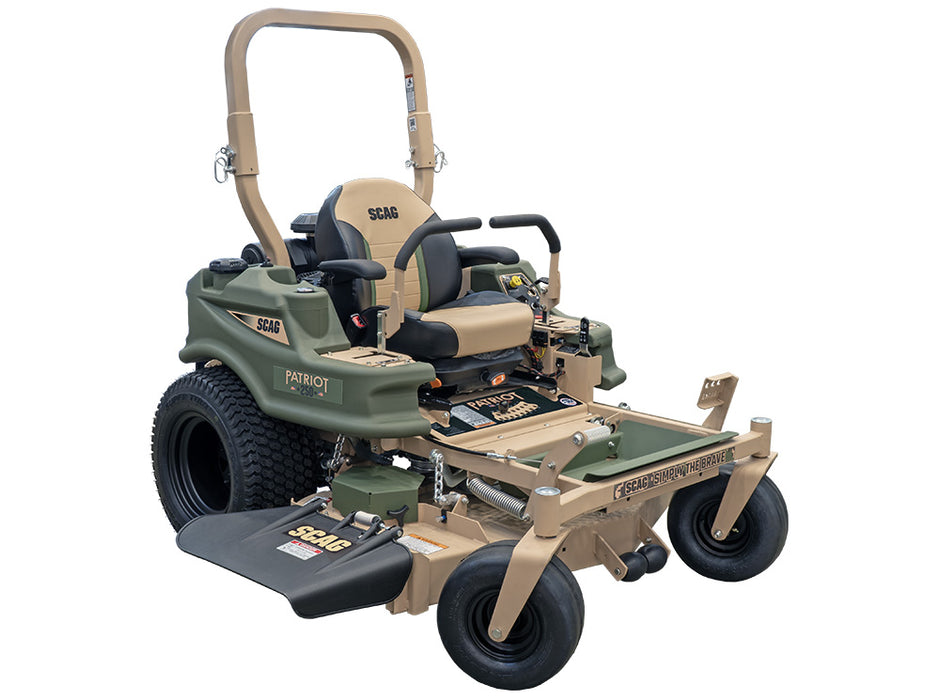

Scag Patriot Commercial Zero Turn Mower - 61in Hero Cutter Deck - 23hp Kawasaki FX - Simply The Brave Edition - SPZ-61H-23FX-T
The Scag Patriot SPZ-61H-23FX-T is a commercial zero-turn mower with a 61in Hero deck and a 23hp Kawasaki FX Series engine. It is an entry commercial zero-turn for lawn care professionals and serious homeowners who want a low-maintenance machine with a deep Hero deck. It runs dual Hydro-Gear ZT transaxles, a torsion-spring suspension seat and a foot-operated disc parking brake.
This is a Simply the Brave edition. Scag's Simply the Brave series supports our nation's heroes: for each eligible mower sold, Scag makes a donation to the Gary Sinise Foundation's First Responders Outreach program and A Soldier's Child Foundation. These units do not use Scag's Cat's Eye Gold paint but are otherwise the same Scag mower.
Key Features
- 61in Hero cutter deck: deep, fabricated and welded, dual-plate construction with a reinforcement plate at the spindles
- 23hp Kawasaki FX Series engine (FX730V, 726cc)
- Heavy-duty aluminum blade-drive spindles with sealed ball bearings
- Hydro-Gear ZT-3400 transaxles (12 cc pumps, 16 cc motors), up to 10 mph, with all-metal gears, spin-on oil filters and cooling fans
- Torsion-spring suspension seat that adjusts to operator weight, contoured with armrests
- Pierced, extruded-steel footplate, rubber iso-mounted
- Foot-operated parking brake with Ausco disc brakes, engaged without taking hands off the steering levers
- Ogura GT2 PTO clutch brake (108 ft lb) with adjustable air gap
- Tubular-steel main frame and fewer grease points
Specifications
- Model SPZ-61H-23FX-T
- Series Scag Patriot
- Engine Kawasaki FX Series, 23 hp
- Engine model FX730V
- Displacement 726cc
- Fuel type Gasoline
- Cutting width 61in
- Deck type Hero
- Total fuel capacity 6.5 gallons
- Drive tires 24in x 12in-12in
- Caster tires 13in x 6.5in-6in
- Seat Torsion-spring suspension seat
- Drive system Hydro-Gear ZT-3400 transaxles
- Pumps Internal 12 cc
- Wheel motors Internal 16 cc
- Forward ground speed 10 mph
- Reverse ground speed 5 mph
- Parking brake Foot-operated pedal
- Cutting height 1.5in to 5in in 0.25in increments
- Deck lift Foot-operated pedal
- Deck construction Dual-plate cutter deck, 2 steel plates, reinforcement plate at spindles
- Spindles Aluminum housing with sealed ball bearings
- Blade engagement Ogura GT2 (108 ft lb), adjustable air gap
- Length 79in
- Width (chute down) 73.5in
- Width (chute in transport position) 62in
- Height (ROPS folded) 47in
- Height (ROPS up) 61in
- Weight 952-956 lb (varies by engine)
- Optional Scag accessories Tiger Stripe Lawn Striping System, 2-Bag Spindle Driven Grass Catcher, 2-Bag Grass Catcher, Hurricane Plus Mulch System, Hurricane Mulch System, Mulch Plate, Trailer Hitch, Chrome Wheel Covers, LED Light Kit, Flat-Free Caster Tires, Blade Buddy, Foldable ROPS
Warranty
- 2-year commercial machine warranty, or 3 years / 500 hours non-commercial (frame and structural components, hydraulic pumps and wheel motors; parts and labor; excludes wear items)
- Wear items (belts, blades, hydraulic hoses, tires, batteries) and rental use: 90 days
- Engine: covered by the engine manufacturer; see the engine owner's manual
Warranty terms per Scag Power Equipment. Ask us for the full warranty statement.
Questions about this mower, delivery or setup? Call us at (251) 653-5900 or visit our Theodore or Saraland stores.
