Scag SW Belt-Drive Commercial Walk Behind Mower - 48in Velocity Plus Deck - 14hp Kawasaki FS - SW-48V-14FS
by Scag
Special Order
Original price
$5,799.00
-
Original price
$5,799.00
Original price
$5,799.00
$5,799.00
-
$5,799.00
Current price
$5,799.00

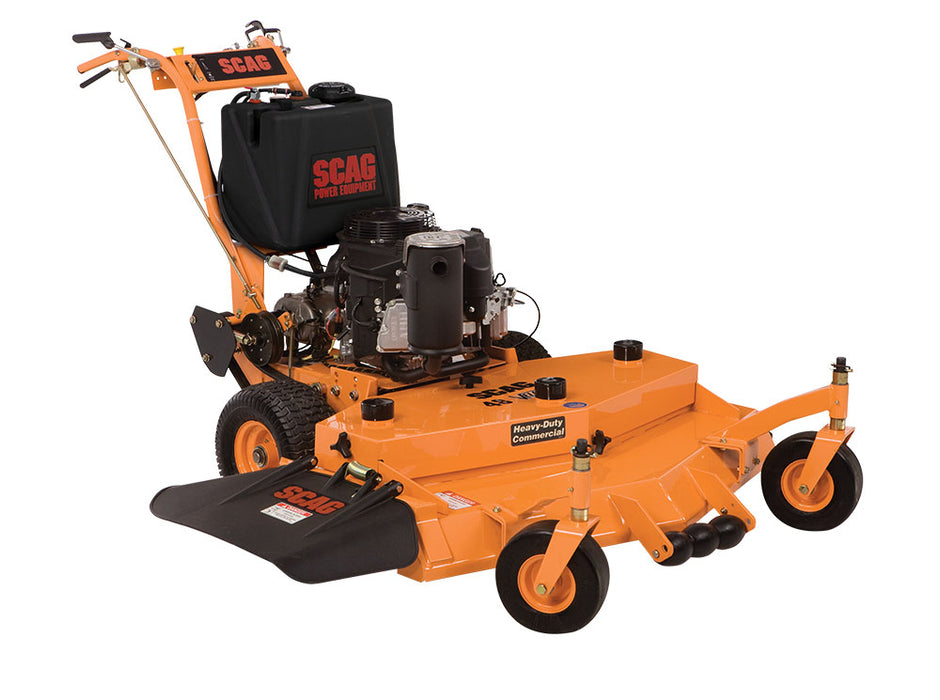

The Scag SW Belt-Drive SW-48V-14FS is a commercial walk-behind mower with a 48in Velocity Plus deck and a 14hp Kawasaki FS Series V-twin engine. It is a belt-drive commercial walk-behind for crews and property owners who want a simple, economical machine that is easy to service. It uses a five-speed Peerless transmission, twin drive belts and a dual-plate cutter deck.
Key Features
- 48in Velocity Plus cutter deck, dual-plate construction with a reinforcement plate at the spindles

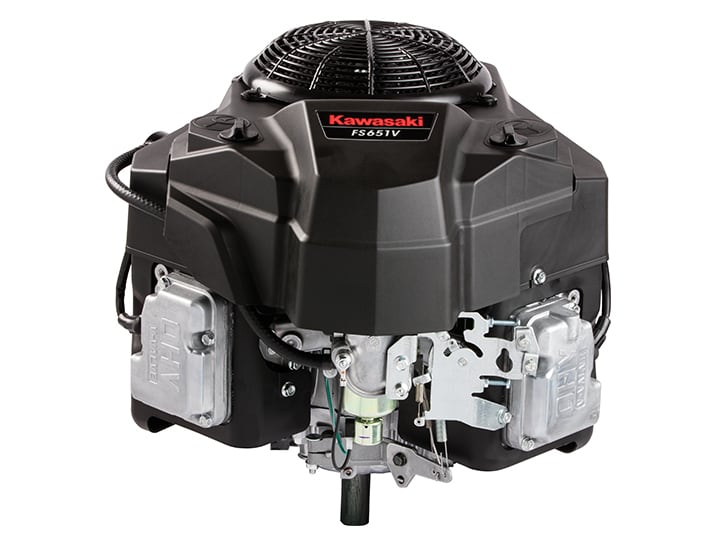

- 14hp Kawasaki FS Series V-twin engine
- Cast-iron spindle housings with tapered roller bearings

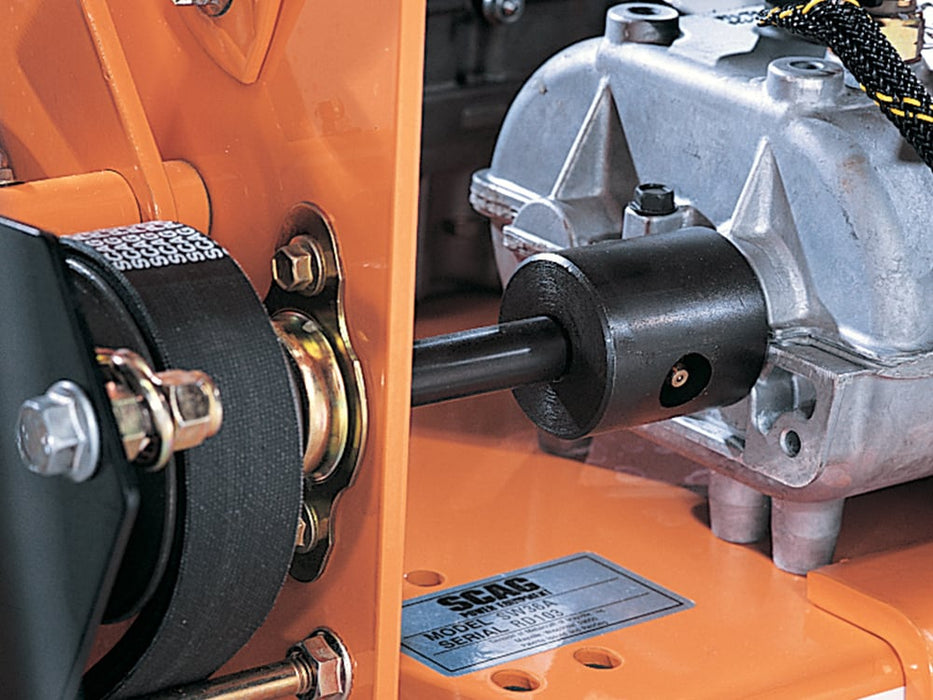

- Five-speed Peerless transmission with nine-spline coupler shafts, up to 6 mph forward
- Twin power belts give double friction at the pulleys and reduce slipping in wet conditions

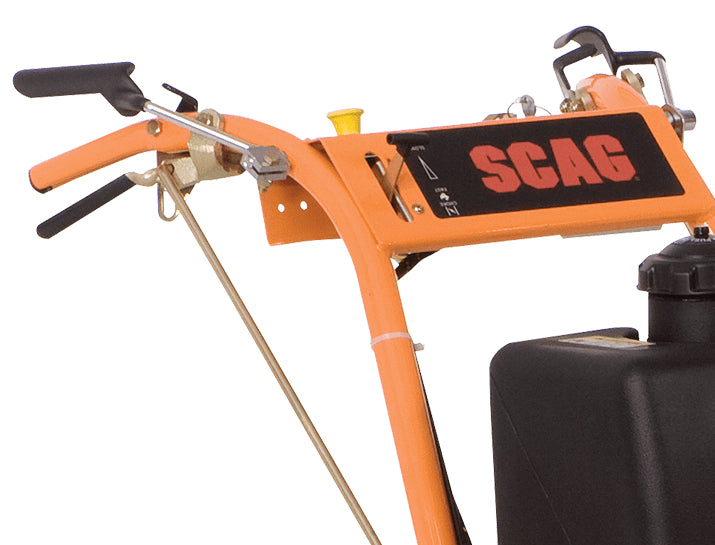

- Spring-assisted EZ-Grip drive controls reduce hand effort

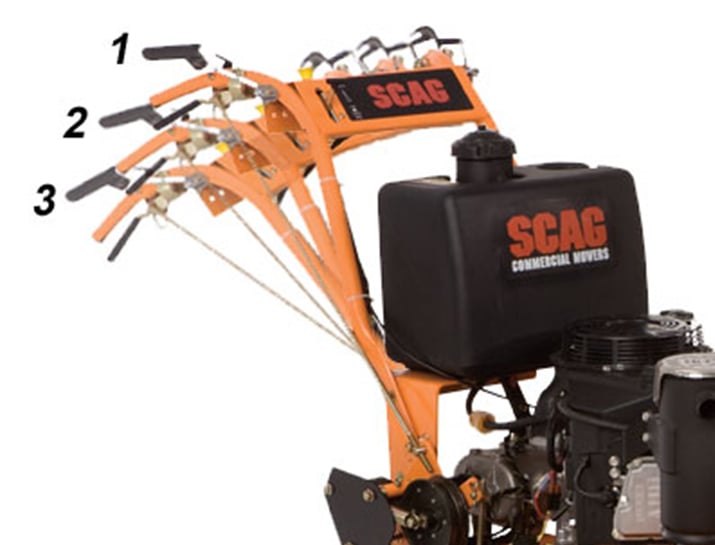

- Handlebars adjust to three positions
- Ogura MA-GT-EXM3X electric clutch (110 ft lb) with adjustable air gap
- Easy-access design with an open engine area and easy-to-reach grease zerks
Specifications
- Model SW-48V-14FS
- Series Scag SW Belt-Drive
- Engine Kawasaki FS Series V-twin, 14 hp
- Fuel type Gasoline
- Cutting width 48in
- Deck type Velocity Plus
- Total fuel capacity 5.5 gallons
- Drive tires 13in x 6.5in-6in
- Caster tires 9in x 3.5in
- Drive system Belt drive with 5-speed Peerless transmission
- Forward ground speed Up to 6 mph
- Reverse ground speed 2 mph
- Parking brake Hand lever
- Cutting height 1.75in to 4.5in in 0.25in increments
- Deck construction Dual-plate cutter deck, 2 steel plates, reinforcement plate at spindles
- Spindles Cast-iron housing with tapered roller bearings
- Blade engagement Ogura MA-GT-EXM3X (110 ft lb), adjustable air gap
- Length 76in
- Width (chute down) 60.5in
- Width (chute in transport position) 49in
- Weight 515 lb
- Optional Scag accessories Fabric Bag Grass Catcher, Hurricane Plus Mulch System, Hurricane Mulch System, Mulch Plate, Blade Buddy
