Scag SWZ Commercial Walk Behind Mower - 52in Velocity Plus Deck - 18hp Kawasaki FS - Electric Start - SWZ-52V-18FSE
by Scag
Special Order
Original price
$9,299.00
-
Original price
$9,299.00
Original price
$9,299.00
$9,299.00
-
$9,299.00
Current price
$9,299.00

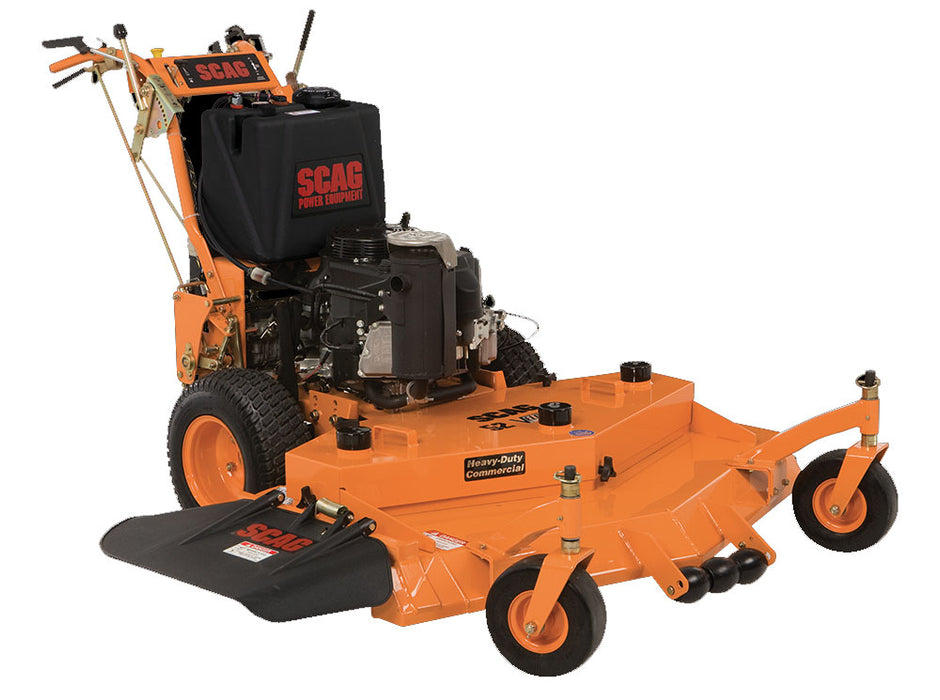

The Scag SWZ Hydro-Drive SWZ-52V-18FSE is a commercial walk-behind mower with a 52in Velocity Plus deck and a 18hp Kawasaki FS Series V-twin, electric start engine. It is a fixed-deck hydro-drive commercial walk-behind for crews who want smooth hydraulic drive and a heavy-duty Scag deck in a machine that is easy to handle. It runs dual Hydro-Gear pumps with Parker wheel motors and has an Adjust-A-Trac tool on the engine deck for field tracking adjustments.
Key Features
- 52in Velocity Plus cutter deck, dual-plate construction with a reinforcement plate at the spindles

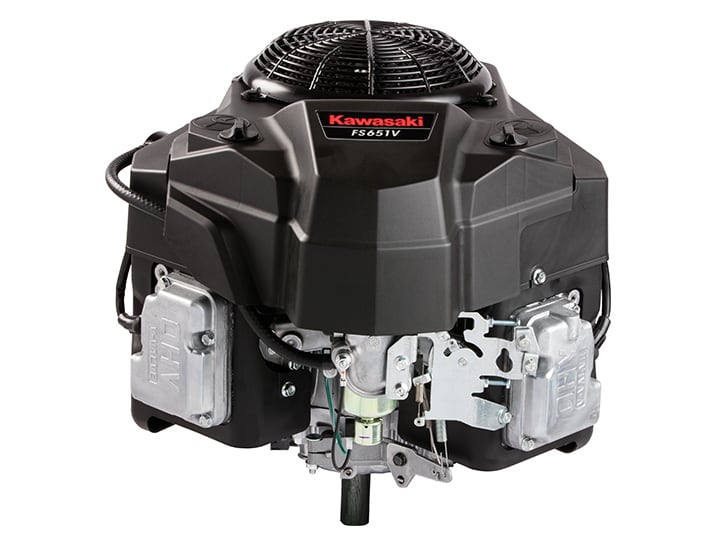

- 18hp Kawasaki FS Series V-twin, electric start engine
- Cast-iron spindle housings with tapered roller bearings
- Dual Hydro-Gear 10 cc pumps and Parker wheel motors, up to 7.4 mph forward and 3 mph reverse

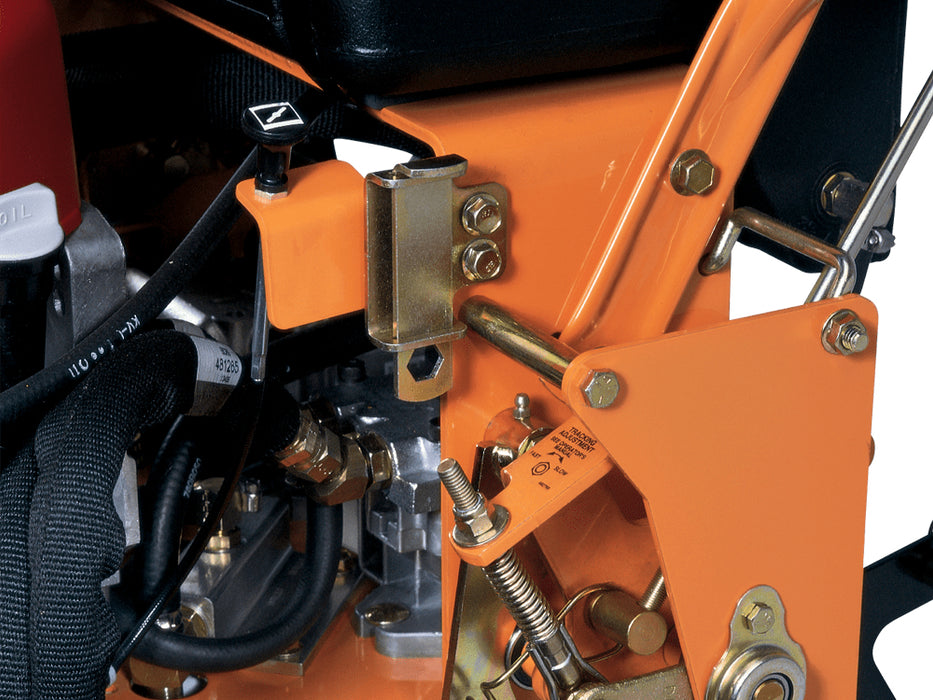

- Adjust-A-Trac tool mounted on the engine deck for neutral and tracking adjustments in the field

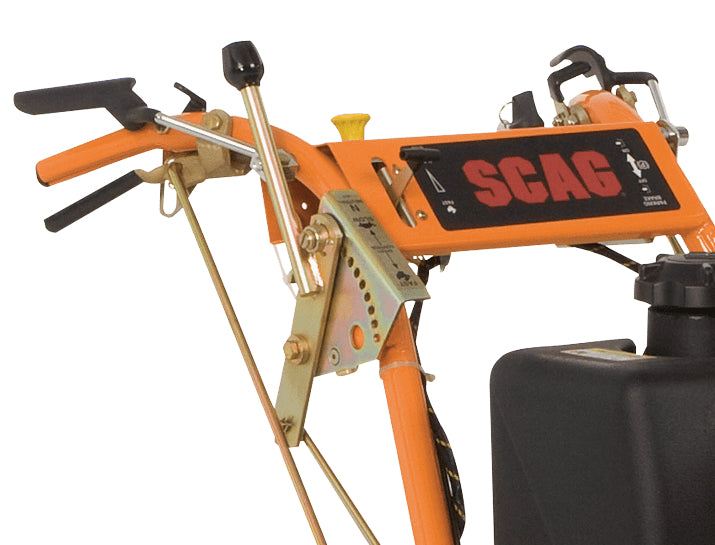

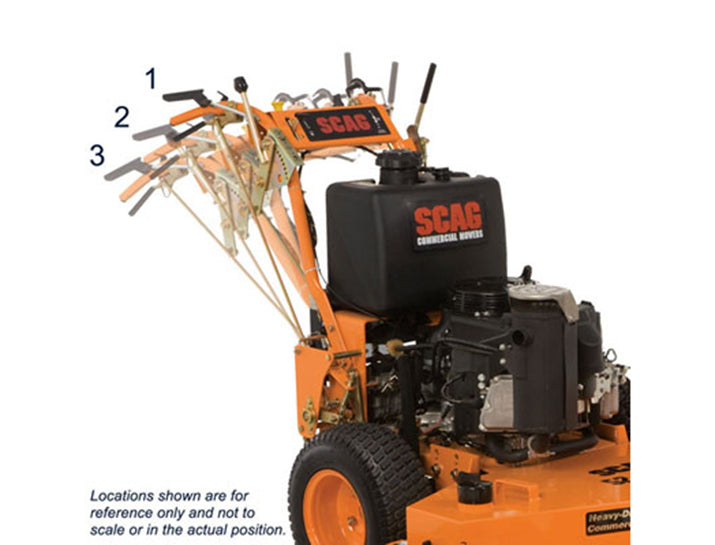

- Spring-assisted EZ-Grip drive controls and handlebars with three positions
- Ogura MA-GT-EXM3X electric clutch (110 ft lb) with adjustable air gap
- Easy-access design with an open engine area and easy-to-reach grease zerks
Specifications
- Model SWZ-52V-18FSE
- Series Scag SWZ Hydro-Drive
- Engine Kawasaki FS Series V-twin, electric start, 18 hp
- Starting Electric start
- Fuel type Gasoline
- Cutting width 52in
- Deck type Velocity Plus
- Total fuel capacity 5.5 gallons
- Drive tires 16in x 6.5in-8in
- Caster tires 9in x 3.5in
- Drive system Dual pump and motor
- Pumps Hydro-Gear 10 cc
- Forward ground speed Up to 7.4 mph
- Reverse ground speed 3 mph
- Parking brake Hand lever
- Cutting height 1.75in to 4.5in in 0.25in increments
- Deck construction Dual-plate cutter deck, 2 steel plates, reinforcement plate at spindles
- Spindles Cast-iron housing with tapered roller bearings
- Blade engagement Ogura MA-GT-EXM3X (110 ft lb), adjustable air gap
- Length 76in
- Width (chute down) 64.5in
- Width (chute in transport position) 53in
- Weight 585-660 lb (52in models)
- Optional Scag accessories Fabric Bag Grass Catcher, Hurricane Plus Mulch System, Hurricane Mulch System, Mulch Plate, Chrome Wheel Covers, Blade Buddy
