Scag SWZT Commercial Walk Behind Mower - 36in Hero Cutter Deck - 14hp Kawasaki FS - SWZT-36H-14FS
by Scag
Special Order
Original price
$6,499.00
-
Original price
$6,499.00
Original price
$6,499.00
$6,499.00
-
$6,499.00
Current price
$6,499.00

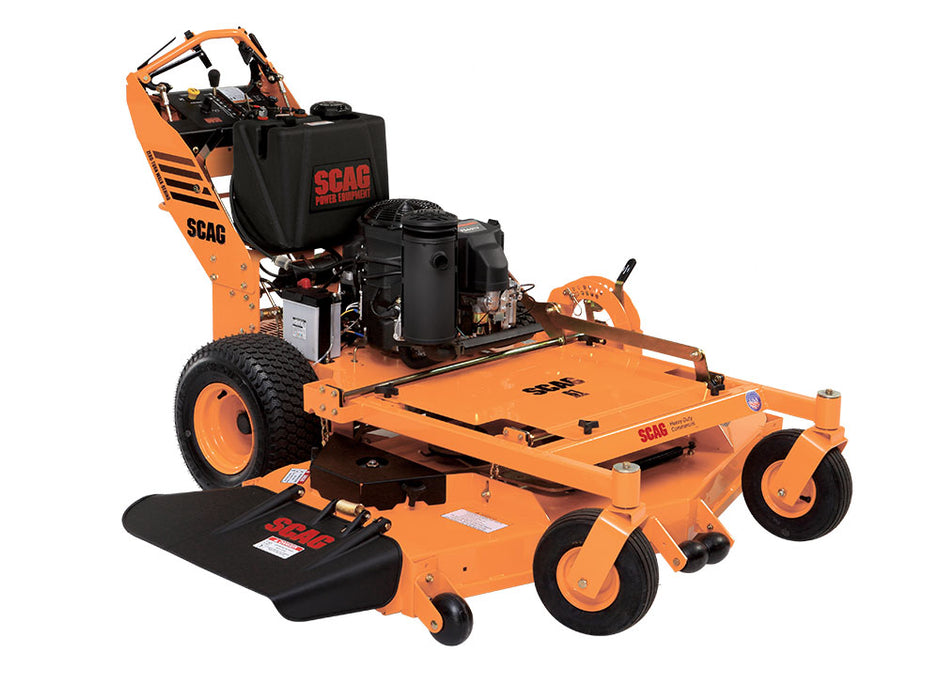

The Scag SWZT Hydro-Drive SWZT-36H-14FS is a commercial walk-behind mower with a 36in Hero deck and a 14hp Kawasaki FS Series V-twin engine. It is a floating-deck hydro-drive walk-behind for crews who spend long days behind the handles. Its ergonomic controls follow the natural angle of your arms and keep your hands clear of trees and shrubs, and it has a deep Hero deck with tool-free, rider-style height adjustment.
Key Features

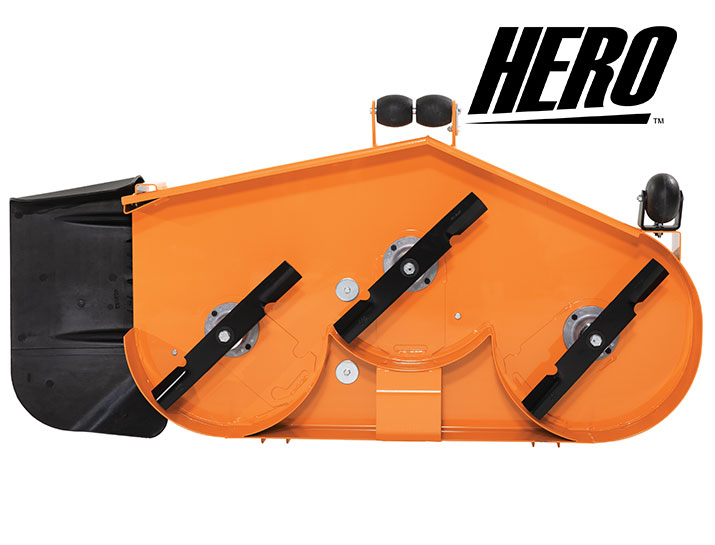

- 36in Hero cutter deck: deep, fabricated and welded, dual-plate construction with a reinforcement plate at the spindles

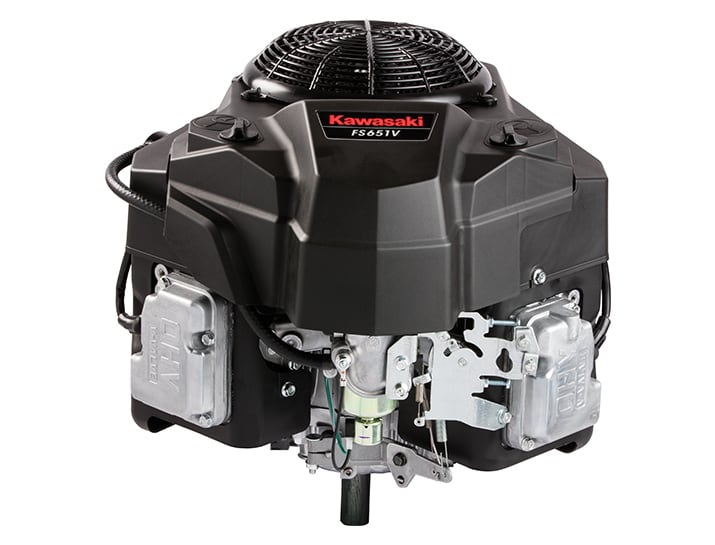

- 14hp Kawasaki FS Series V-twin engine
- Heavy-duty aluminum blade-drive spindles with sealed ball bearings
- Dual Hydro-Gear ZT-2800 transaxles with all-metal gears: 10 cc variable-displacement pump and 16 cc motor in each, up to 7 mph

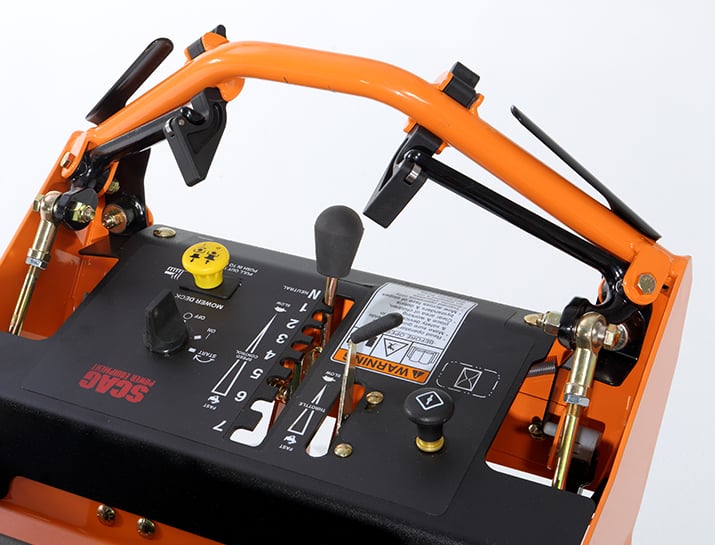

- Ergonomic controls contour to the natural angle of your arms and keep hands clear of obstacles

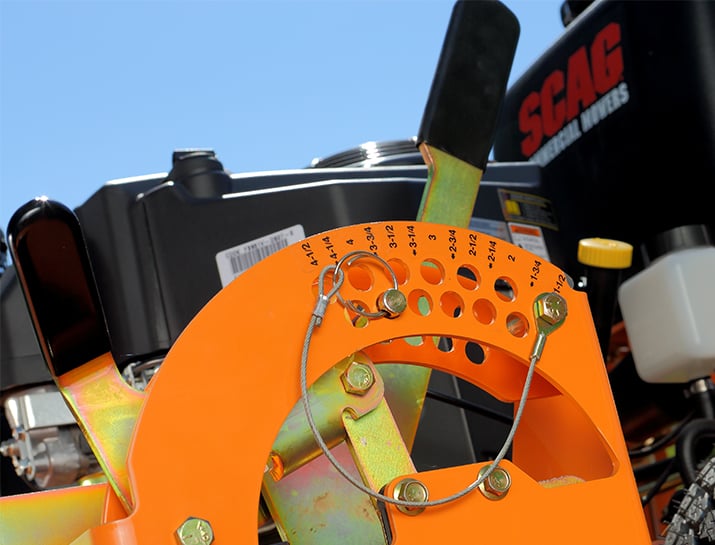

- Tool-free, rider-style height-of-cut adjustment
- Ogura GT1-BS03 PTO clutch (110 ft lb) with adjustable air gap
- Easy-access design with an open engine area and easy-to-reach grease zerks
Specifications
- Model SWZT-36H-14FS
- Series Scag SWZT Hydro-Drive
- Engine Kawasaki FS Series V-twin, 14 hp
- Fuel type Gasoline
- Cutting width 36in
- Deck type Hero
- Total fuel capacity 5.5 gallons
- Drive tires 18in x 6.5in-8in
- Caster tires 9in x 6.5in-4in
- Drive system Hydro-Gear ZT-2800 transaxles
- Pumps Internal 10 cc
- Wheel motors Internal 16 cc
- Forward ground speed Up to 7 mph
- Reverse ground speed 3 mph
- Parking brake Hand lever
- Cutting height 1.5in to 4.5in in 0.25in increments
- Deck lift Hand lever
- Deck construction Dual-plate cutter deck, 2 steel plates, reinforcement plate at spindles
- Spindles Aluminum housing with sealed ball bearings
- Blade engagement Ogura GT1-BS03 (110 ft lb), adjustable air gap
- Length 75.5in
- Height 44in
- Tracking width 36.25in
- Width (chute down) 48.5in
- Width (chute in transport position) 37in
- Weight 550 lb
- Optional Scag accessories Fabric Bag Grass Catcher, Hurricane Plus Mulch System, Hurricane Mulch System, Mulch Plate, Flat-Free Caster Tires, Blade Buddy
