Scag V-Ride II Commercial Stand On Mower - 32in Advantage Deck - 16hp Kawasaki FX - SVRII-32A-16FX
by Scag
Special Order
Original price
$9,999.00
Original price
$9,999.00
-
Original price
$9,999.00
Original price
$9,999.00
Current price
$9,400.00
$9,400.00
-
$9,400.00
Current price
$9,400.00

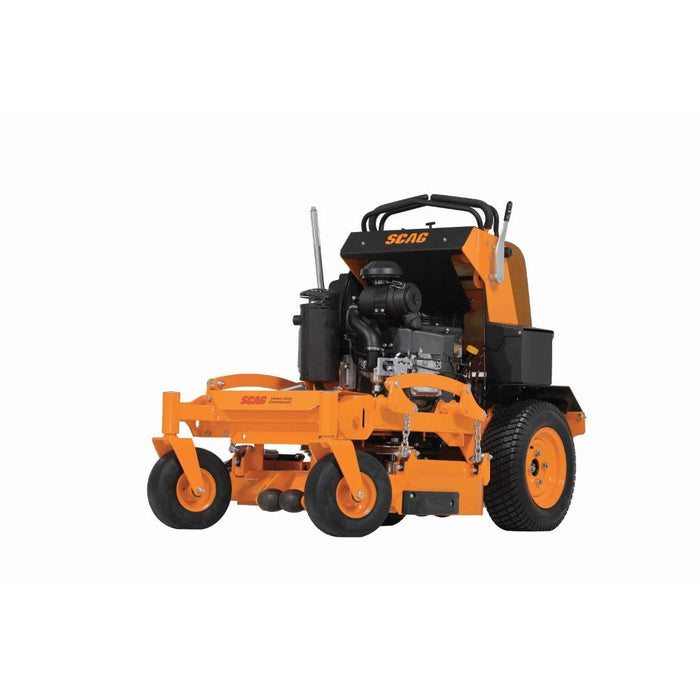

The Scag V-Ride II SVRII-32A-16FX is a commercial stand-on mower with a 32in Advantage deck and a 16hp Kawasaki FX Series engine. It is built for landscape crews and property managers who want a compact stand-on machine that is easy to step on and off. The V-Ride II puts the operator on a spacious suspended platform with an extra-thick comfort cushion, and it can be serviced quickly thanks to removable covers and an open engine compartment.
Key Features
- 32in Advantage cutter deck (dual-plate construction on the 32in)
- 16hp Kawasaki FX Series engine (FX600V, 603cc)
- Cast-iron spindle housings with tapered roller bearings

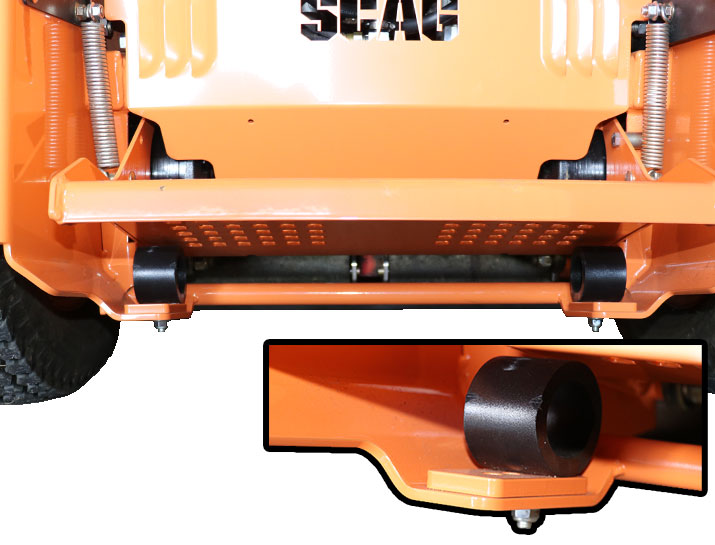

- Spacious operator platform with an adjustable suspension spring (move it forward or back, with or without the spacer plate) and an extra-large, extra-thick comfort cushion

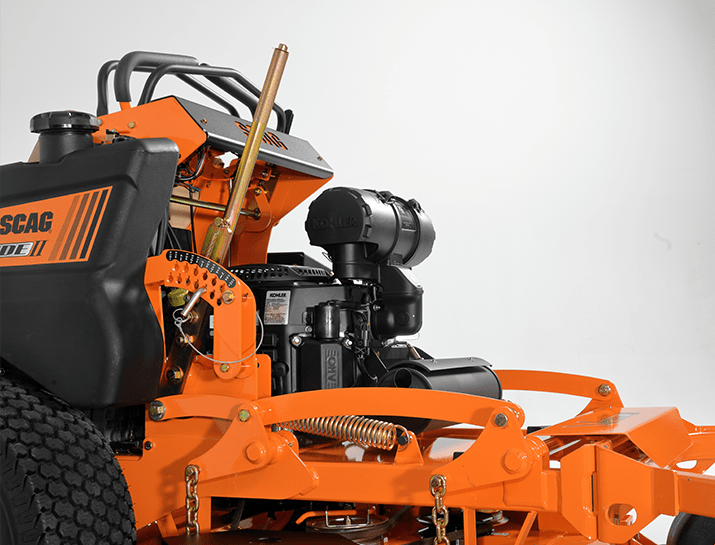

- Spring-assisted deck lift lever locks the deck in transport position from the operator station; cutting height is set with a tethered pin
- Dual Hydro-Gear 10 cc pumps and Parker 12 ci wheel motors, up to 8.5 mph
- Ogura GT2.5 PTO clutch brake (150 ft lb) with adjustable air gap
- Heavy-duty single-tube steel main frame with replaceable front caster-wheel weldments
Specifications
- Model SVRII-32A-16FX
- Series Scag V-Ride II
- Engine Kawasaki FX Series, 16 hp
- Engine model FX600V
- Displacement 603cc
- Fuel type Gasoline
- Cutting width 32in
- Deck type Advantage
- Total fuel capacity 5 gallons
- Drive tires 20in x 6.5in-10in
- Caster tires 11in x 4in-5in
- Operator platform Suspended platform with extra-large comfort cushion
- Drive system Dual pump and motor
- Pumps Hydro-Gear 10 cc
- Wheel motors Parker 12 ci
- Forward ground speed 8.5 mph
- Reverse ground speed 5 mph
- Parking brake Hand lever
- Cutting height 1.5in to 4.5in in 0.25in increments
- Deck lift Spring-assisted hand lever
- Deck construction Dual-plate cutter deck
- Spindles Cast-iron housing with tapered roller bearings
- Blade engagement Ogura GT2.5 (150 ft lb), adjustable air gap
- Length 65.25in
- Tracking width 32in
- Width (chute down) 43in
- Width (chute in transport position) 33.75in
- Height 47in
- Weight 818 lb
- Optional Scag accessories Lawn Striping System, V-Ride Spindle-Driven Grass Catcher, Hurricane Plus Mulch System, Hurricane Mulch System, Mulch Plate, E-OCDC Electronic Operator-Controlled Discharge Chute, Chrome Wheel Covers, LED Light Kit, Flat-Free Caster Tires, Blade Buddy
