Scag V-Ride XL Commercial Stand On Mower - 52in Velocity Plus Deck - 40hp Briggs & Stratton Vanguard EFI - Blackout - SVRXL-52V-40BV-EFI
by Scag
Special Order
Original price
$15,399.00
Original price
$15,399.00
-
Original price
$15,399.00
Original price
$15,399.00
Current price
$14,600.00
$14,600.00
-
$14,600.00
Current price
$14,600.00
The Scag V-Ride XL SVRXL-52V-40BV-EFI is a commercial stand-on mower with a 52in Velocity Plus deck and a 40hp Briggs & Stratton Vanguard BIG BLOCK EFI engine. It is aimed at commercial crews mowing large properties who want stand-on maneuverability with a bigger fuel tank, heavier-duty hydraulics and EFI power on every model. It has a solid single-tube frame and an expansive operator platform with adjustable suspension.
Like the other V-Ride XL models, it carries Scag's Blackout finish.
Key Features
- 52in Velocity Plus cutter deck, tri-plate construction totaling nearly 1/2in of steel

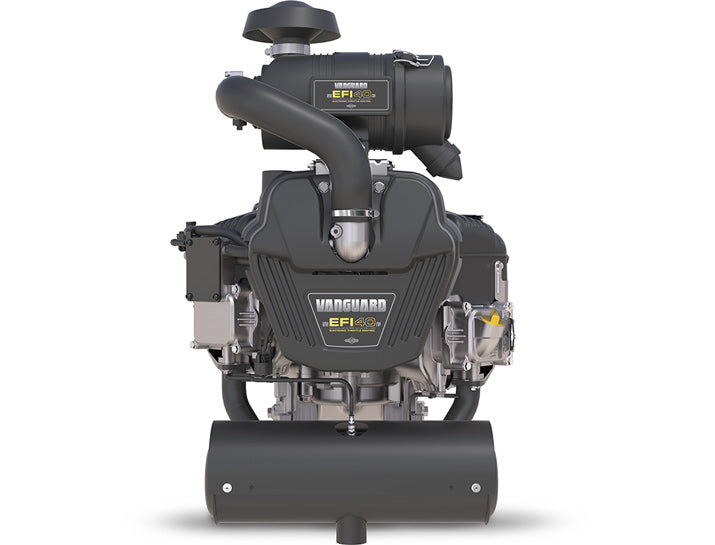

- 40hp Briggs & Stratton Vanguard BIG BLOCK EFI engine (Vanguard EFI 993, 993cc)
- Cast-iron spindle housings with tapered roller bearings
- Heavy-duty Hydro-Gear 16 cc pumps and high-torque Hydro-Gear 18 ci wheel motors with pump shock valves and cooling fans, up to 11.6 mph
- Electronic fuel injection (EFI) is standard on all V-Ride XL models
- 12-gallon fuel capacity

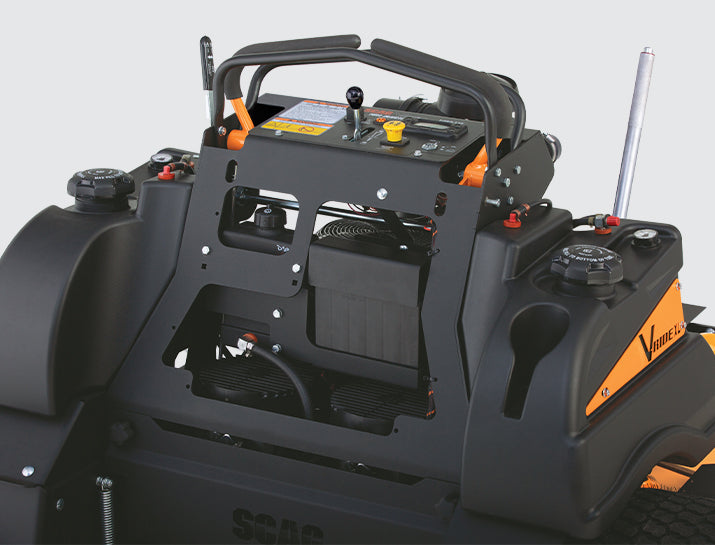

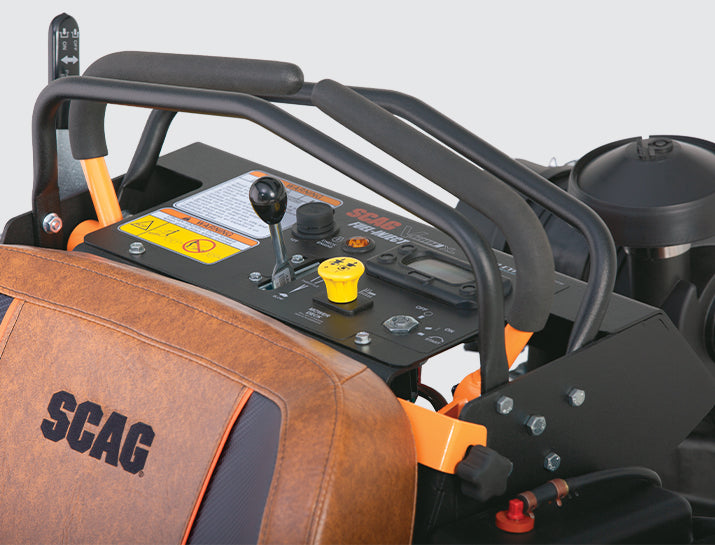

- Spacious operator platform with adjustable suspension and an extra-large comfort cushion
- Cutting height from 2in to 6in in 1/4in steps, with a spring-assisted deck lift lever at the operator station

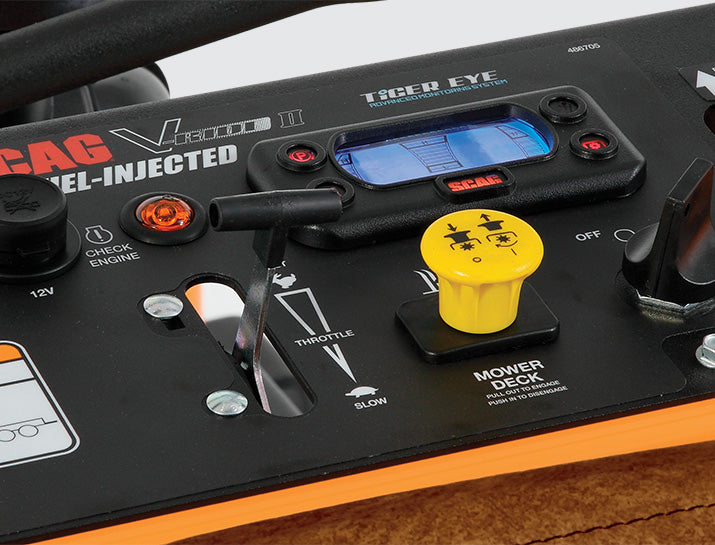

- Tiger Eye Advanced Monitoring System (functions vary by model and engine)
- Comfort cushion and lower panel remove for service access to the hydraulic system
Specifications
- Model SVRXL-52V-40BV-EFI
- Series Scag V-Ride XL
- Engine Briggs & Stratton Vanguard BIG BLOCK EFI, 40 hp
- Engine model Vanguard EFI 993
- Displacement 993cc
- Fuel system Electronic fuel injection (EFI)
- Fuel type Gasoline
- Cutting width 52in
- Deck type Velocity Plus
- Total fuel capacity 12 gallons
- Drive tires 24in x 9.5in-12in
- Caster tires 13in x 6.5in-6in
- Operator platform Adjustable suspension platform with extra-large comfort cushion
- Drive system Dual pump and motor
- Pumps Hydro-Gear 16 cc
- Wheel motors Hydro-Gear 18 ci
- Forward ground speed Up to 11.6 mph
- Reverse ground speed 5 mph
- Parking brake Hand lever
- Cutting height 2in to 6in in 0.25in increments
- Deck lift Spring-assisted hand lever
- Deck construction Tri-plate cutter deck, 3 steel plates totaling nearly 1/2in of steel, reinforcement plates at spindles
- Spindles Cast-iron housing with tapered roller bearings
- Blade engagement Ogura 3.5 (250 ft lb), adjustable air gap
- Length 70.5in
- Tracking width 51.5in
- Width (chute down) 65.25in
- Width (chute in transport position) 53.75in
- Height 47.75in
- Weight 1,150-1,179 lb (varies by engine)
- Optional Scag accessories Dual-Wheel Kit, Lawn Striping System, V-Ride Spindle-Driven Grass Catcher, Hurricane Plus Mulch System, Mulch Plate, E-OCDC Electronic Operator-Controlled Discharge Chute, Chrome Wheel Covers, LED Light Kit, Flat-Free Caster Tires, Blade Buddy
